Galaxy SOHO - ZHA

Location_Beijing, Chaoyangmen, China 2009 - 2012
Category_Commerical, Urban Development
Program_Office and Retail Complex
Client_Soho China Ltd.
Size_300,000 sqm (3,000,000 sqft)
Design_Zaha Hadid & Patrik Schumacher
Associates_Cristiano Ceccato & Satoshi Ohashi
Role_BIM & Computational Specialist
CR_© Zaha Hadid Architects

 © Jonathan Leijonhufvud

© Jonathan Leijonhufvud




The project explores continuous circulation throughout the commercial development resulting in four highly fluid low-rise towers with a series of bridges blending in between their geometries. The four towers are concrete structures and the bridges are a steel system, which spans and locks from various floors across the project.

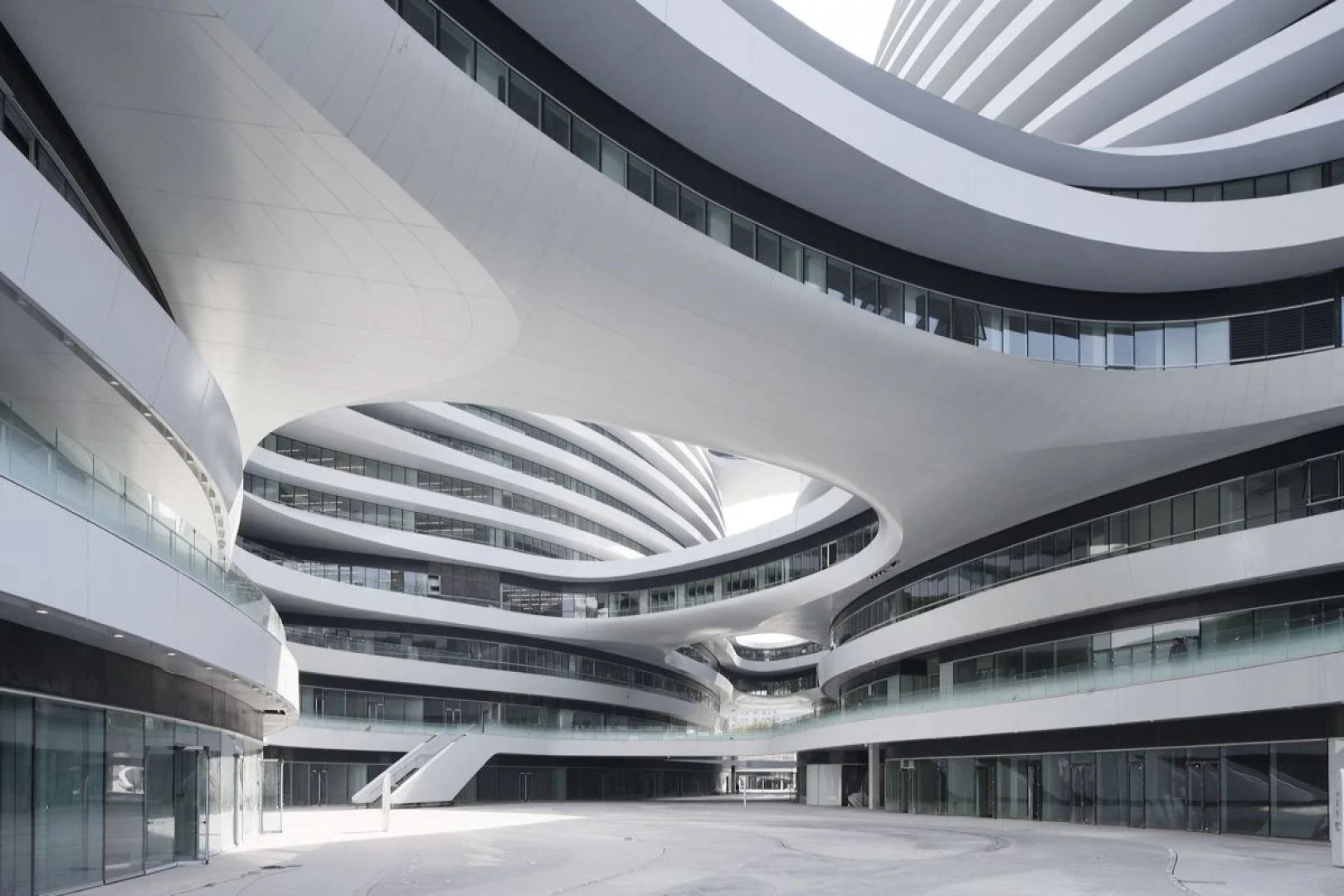

Each tower has a retail atrium space that provides an area for public gathering. Spanning over each atrium is an elliptical dome structure with a lightweight transparent glazing system

To keep up with the fast-paced project schedule advanced design delivery processes were developed to design, rationalize, detail and automate the building. Highly detailed building information models served as the basis for coordinating and analyzing the project systems. The cladding geometry was described through a series of arcs, cylindrical and conical sections, which were organized into families for fabrication. See the Process page for the automation videos.



 © Iwan Baan

© Iwan Baan
